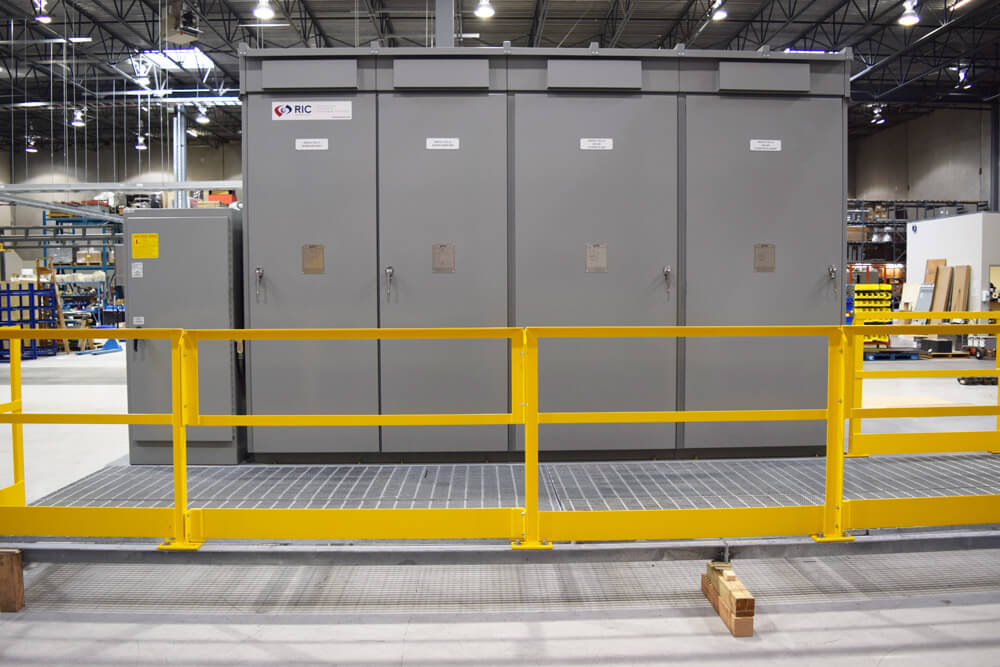

NEMA 3R 25kV Metal Clad Switchgear for Pembina Doors Closed

NEMA 3R Metal Clad Switchgear

Remote Control Panel for Pembina 25kV Switchgear

Category

Metal Clad Switchgear

About This Project

Skid mounted, outdoor, NEMA 3R 4 cell switchgear for a midstream oil and gas company.

RATING

25kV, 600A, 20kA

SWITCHING DEVICES

Eaton VCP-W
ABB NAL Load Break Switch

Relay/Meters

ION7650
GE Multilin SR350
