Metal Enclosed Switchgear

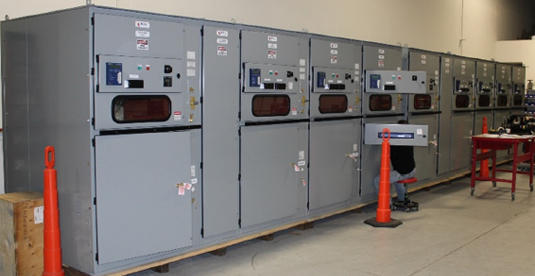

25 kV Metal Enclosed Switchgear

Metal Enclosed Switchgear



Designed for jobs that require a smaller footprint RIC Power’s Metal Enclosed Switchgear offers a customizable unit utilizing a fixed vacuum breaker to maximize space while minimizing investment.

Cost Effective

RIC’s most cost effective switchgear solution.

Small Footprint

Custom engineered for smallest possible footprint.

Reliability

High quality components ensure maximum reliability.

Features & Specifications



Features
  • Front viewing window for visual confirmation of LBS knife position.
  • Busbar support structure configured for optimum heat dissipation and strength under fault conditions.
  • Ground ball studs where applicable for safe maintenance practices.
  • Interlocks to prevent access into lower compartment for fuse replacement.
  • Isolated instrument compartment.
  • Sloped roof, cell heater, door wind-stop, washable filters, light box and tamper proof door hardware (outdoor).
  • Polyolefin heat shrunk busbar c/w booted bus connections (optional).
  • Rear infrared viewing ports (optional).
Ratings

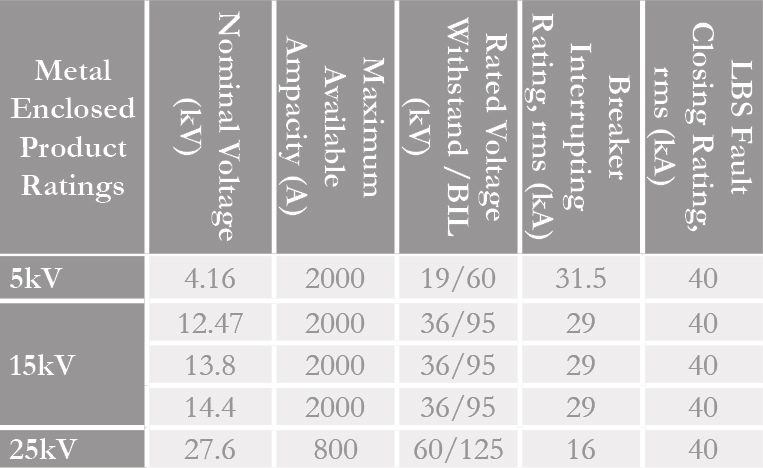

Metal Enclosed Switchgear Ratings

Enclosure Type

NEMA 1, 2, 3R and 4X

Typical Dimensions
Indoor Outdoor
5kV: 53”D x 38”W x 91.5”H 5kV: 60”D x 42”W x 95”H
15kV: 53”D x 38”W x 91.5”H 15kV: 60”D x 42”W x 95”H
25kV: 68”D x 48”W x 91.5”H 25kV: 75”D x 52”W x 95”H
Standards

CSA 22.2 No. 31

Metal Enclosed Outdoor Switchgear

Options: NEMA 2, 3R “Skin tight”, or 4X Enclosure | Breaker Lift Cart | External Remote Racking Device

Metal Enclosed Switchgear Projects

Metal Enclosed Switchgear Diagram Side Walls Removed

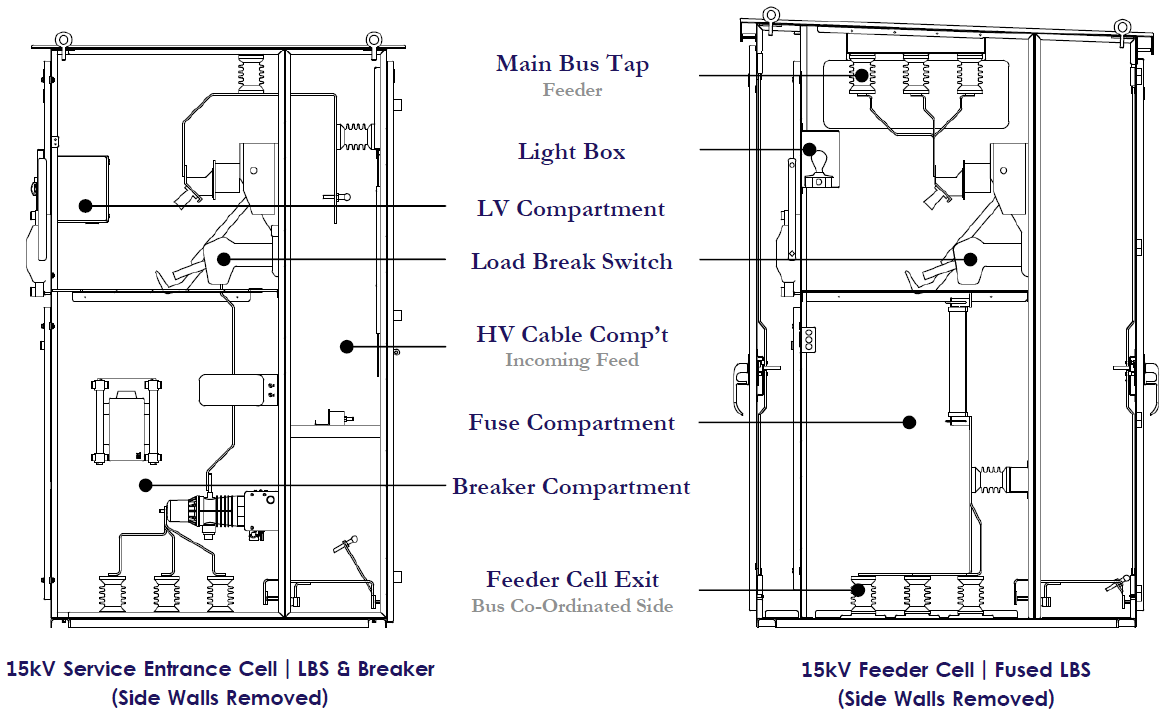

Metal Enclosed Switchgear Drawing
